    Interactive Prototype

    Open the Figma prototype

    Context Diagram

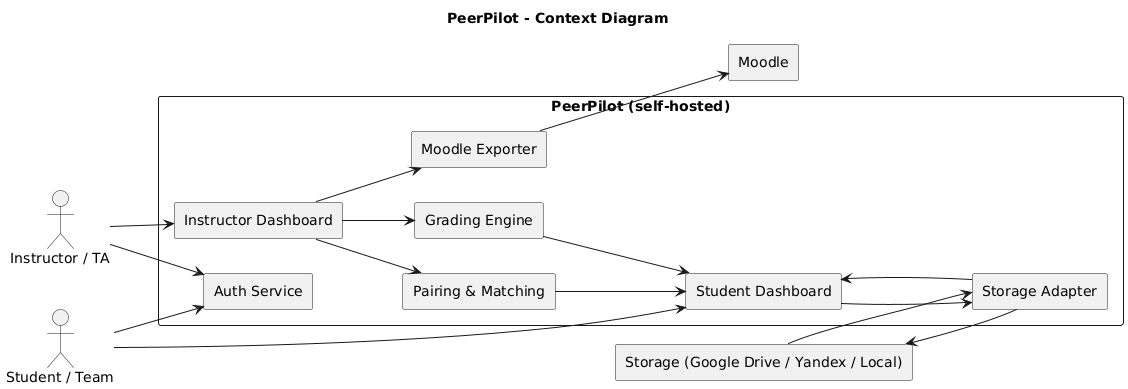

    Context diagram | Actor / System | Description | Key Interactions | |———————————————|———————————————————————|————————————————————————————————–| | Student / Team | Students working in teams on course projects and peer reviews. | Access PeerPilot UI; view team standing and (later) personal bonuses; download submissions; upload peer review PDFs. | | Instructor / TA | Course staff managing teams, grades, and peer reviews. | Use instructor dashboard; lock teams; generate pairings; import submissions; adjust bonuses; export grades. | | Moodle | Official LMS used by the university. | Receives CSV exports produced by PeerPilot (manual upload by instructors; no direct API in MVP). | | Storage Provider (Google Drive / Yandex / Local) | External storage used as file backend. | Provides submission files for import; stores and serves all submission and peer review PDFs via Storage Adapter. |

    Use Case Diagram

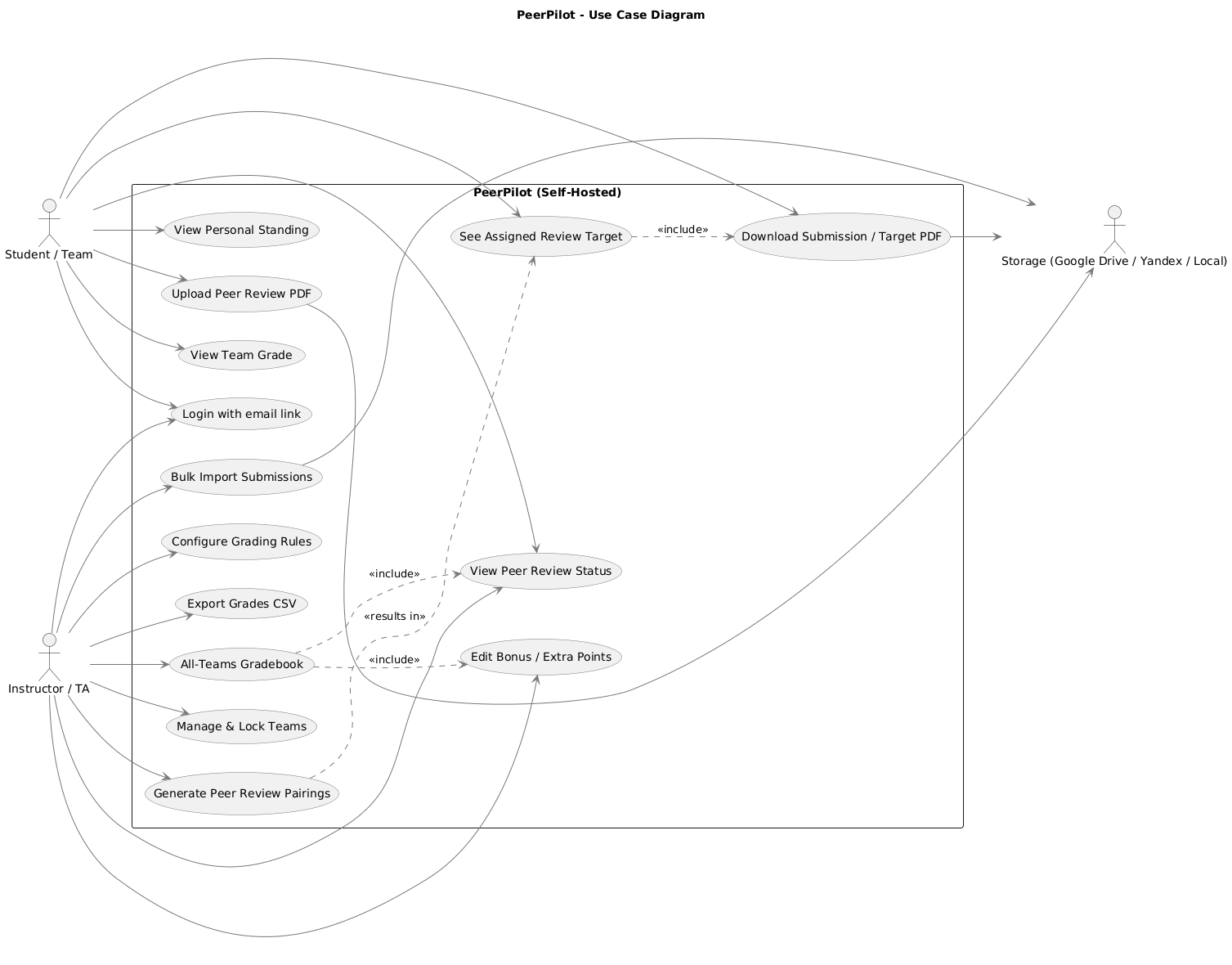

    Use case diagram | Actor | Description | Main Goals | |—————-|————————————————————————-|—————————————————————————————————–| | Student / Team | Authenticated course participant acting as part of a project team. | See team standing and personal standing; know who to review; download target PDFs; upload review PDFs; track review status. | | Instructor / TA| Authenticated staff responsible for course administration and grading. | Set up/lock teams; see all-students gradebook; auto-generate pairings; import submissions; set bonuses; monitor reviews; export grades CSV. | | Storage Provider| External file storage configured for the deployment (Drive/Yandex/Local). | Reliably store and serve all submission and peer review PDFs requested by PeerPilot services. |

    Component Diagram

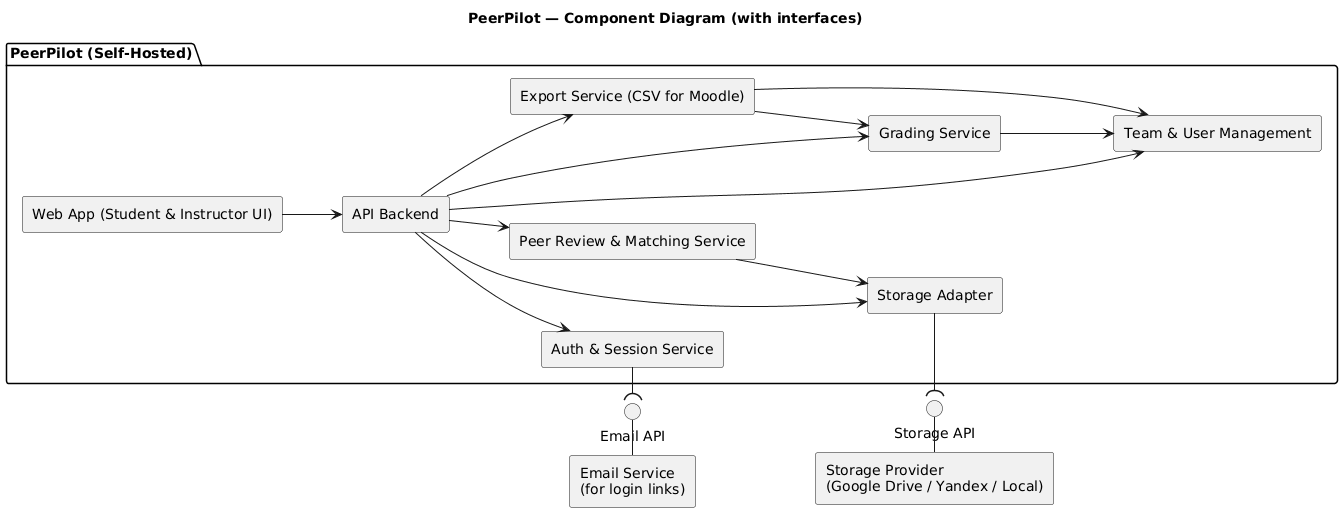

    Component diagram | Component | Responsibilities | |———————————–|——————| | Web App (Student & Instructor UI) | Single web frontend for both roles; renders student dashboard (standing, targets, links) and instructor gradebook/controls; calls API Backend. | | API Backend | Central entrypoint; handles authentication/authorization checks, validates requests, and routes to domain services; exposes REST endpoints. | | Auth & Session Service | Implements passwordless email-link login; manages sessions; assigns roles (student/instructor) based on configured course data. | | Team & User Management | Stores users, teams, and memberships; supports team selection by students, approval and locking by instructors; provides mappings for grading and pairings. | | Peer Review & Matching Service | Generates cyclic/random peer review assignments after teams are locked; tracks who reviews whom per sprint; records review submission status. | | Grading Service | Applies grading rules to team results and bonus/extra points; computes per-student standing for dashboards and for CSV export. | | Storage Adapter | Provides unified API to the configured Storage Provider; imports submission files; uploads and reads all review PDFs; ensures correct paths and access. | | Export Service (CSV for Moodle) | Builds Moodle-compatible CSV (and related exports) from Grading/Team data; used by instructors to upload grades into Moodle manually. | | Email Service (external) | (External) Sends magic login links triggered by Auth & Session Service; no general notifications in MVP. | | Storage Provider (external) | (External) Durable storage for all submission and review PDFs; accessed only via Storage Adapter. |

    Sequence Diagrams

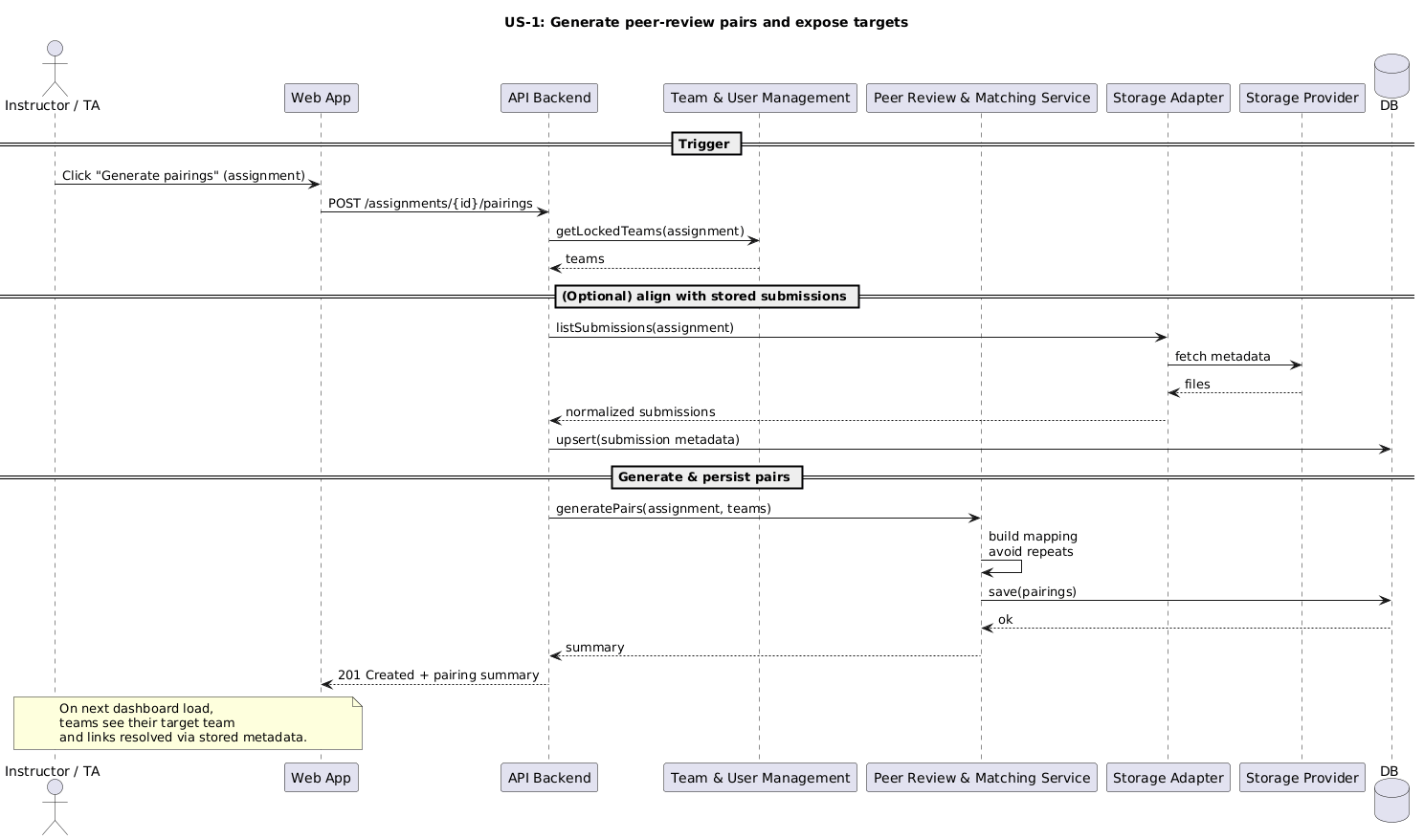

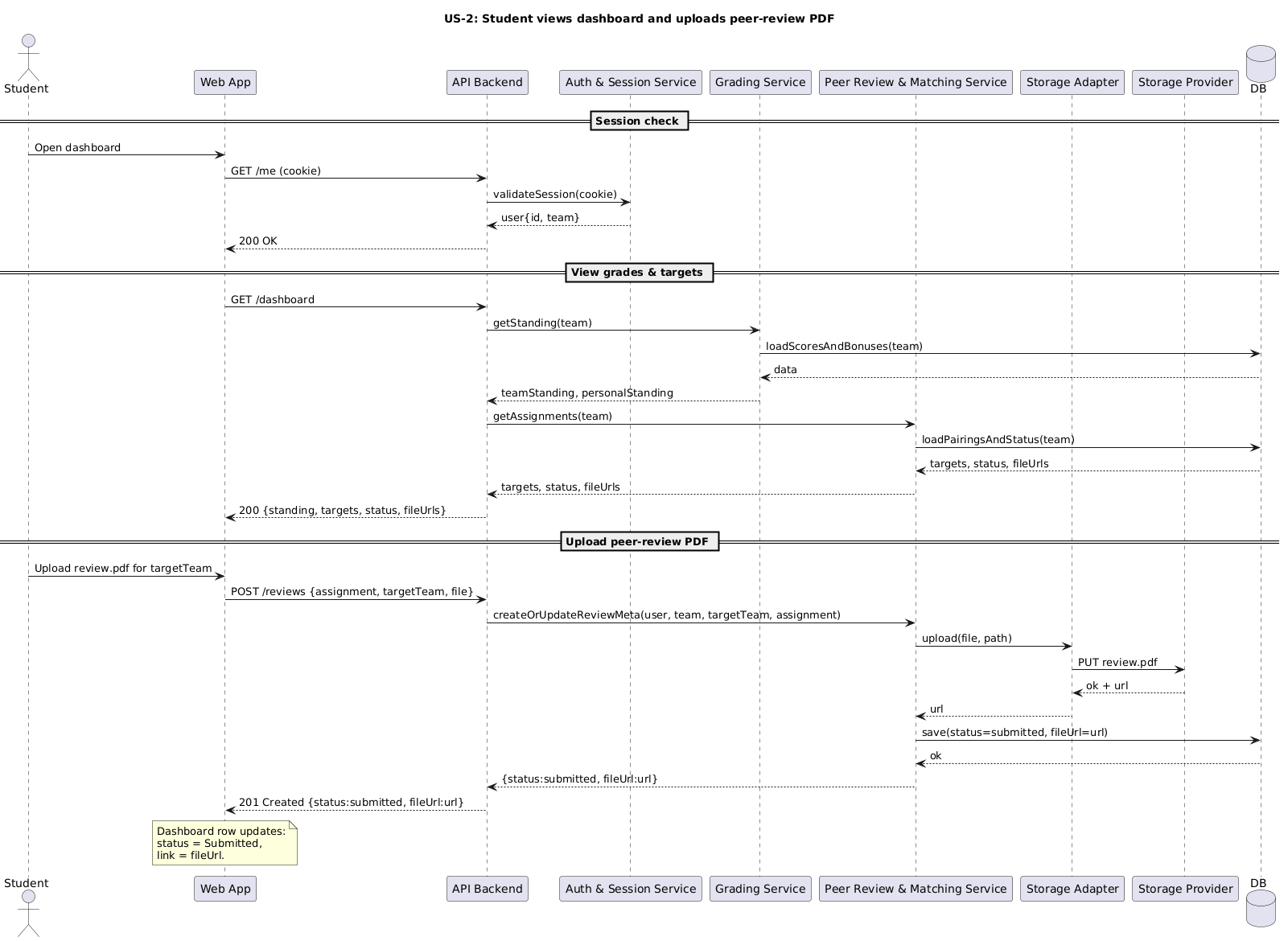

    Sequence diagram Sequence diagram

    Architectural Decisions

Driver Decision Rationale Discarded Alternatives
PRIV-1: Data privacy & on-prem constraint Self-hosted deployment via Docker + docker-compose - Keeps grades/files on university hardware
- Simple ops model for TA/IT to run locally
- Reproducible environments		 - Managed cloud PaaS: violates “no external server” requirement
- Kubernetes: overkill/ops burden for MVP
SIMP-1: Ship fast, small team Monolithic FastAPI app (Python 3.11) with SQLAlchemy/Alembic & PostgreSQL - Minimal moving parts; easier debugging and testing
- Strong ecosystem, known by team
- Alembic gives safe schema evolution		 - Microservices: too much infra/coordination overhead
- NoSQL-first: weak relational modeling for grades/teams
AUTH-1: Low-friction, simple auth Email + password login with signed session cookies (bcrypt/argon2 hashing) Straightforward UX; easy to implement and audit; no external IdP; secure with proper hashing and session TTL/rotation. Magic-link/passwordless (extra email flow and deliverability concerns); University SSO/OAuth (bureaucratic setup, not MVP-ready).
FILE-1: All artifacts in external storage Storage Adapter abstraction over Google Drive / Yandex / Local - One code path for import/upload/download
- Pluggable provider; avoids vendor lock-in
- Aligns with “all files live in storage” rule		 - Binding to a single provider SDK: hard to switch later
- Storing files in DB: bloats DB, complicates backups
INT-1: LMS integration scope control Export Moodle-compatible CSV (manual upload), no Moodle API in MVP - Meets core need with minimal risk
- Works offline/self-hosted; fewer secrets/SSL hurdles
- Faster to implement & support		 - Direct Moodle API sync: higher complexity & failure modes
- Spreadsheet copy/paste: error-prone, time-consuming
